Power line insulators

Application

Power line insulators are specifically designed insulating devices used to support and insulate overhead power transmission and distribution lines. They are installed between the conductive power lines and the supporting structures, such as poles or towers, to provide electrical insulation and maintain the safe and reliable operation of the power grid.

Here are some key aspects of power line insulators:

Electrical Insulation: Power line insulators prevent the flow of electrical current between the energized power lines and the supporting structures. They have high electrical resistance to withstand the high voltages carried by the power lines. By providing this insulation, they ensure that the electrical energy is efficiently transmitted without loss and minimize the risk of electrical shocks or short circuits.

Mechanical Support: Power line insulators are designed to bear the weight and mechanical stresses caused by the power lines. They provide sturdy support and maintain the required separation distance between the conductors and the supporting structures. This mechanical support prevents sagging or swaying of the power lines and protects against damage due to wind, ice, or other external forces.

Types of Power Line Insulators: Power line insulators come in various designs and materials to meet the specific requirements of different voltage levels and environmental conditions. Some common types of power line insulators include:

• Suspension Insulators: These insulators are used in transmission lines and are suspended from overhead supports. They consist of a series of porcelain or composite insulator discs connected by metal fittings.
• Pin Insulators: Pin insulators are used in distribution lines and are mounted on supporting poles. They have a single insulator unit with a metal pin at the center, which is secured to the pole.
• Strain Insulators: Strain insulators are used at the endpoints of long spans or angles in power lines. They provide both insulation and mechanical support to handle the tension and forces in the power lines.
• Post Insulators: Post insulators are used in substations and electrical equipment to support busbars, disconnect switches, and other apparatus. They have a single insulator unit with a metal base that is bolted or clamped to the structure.

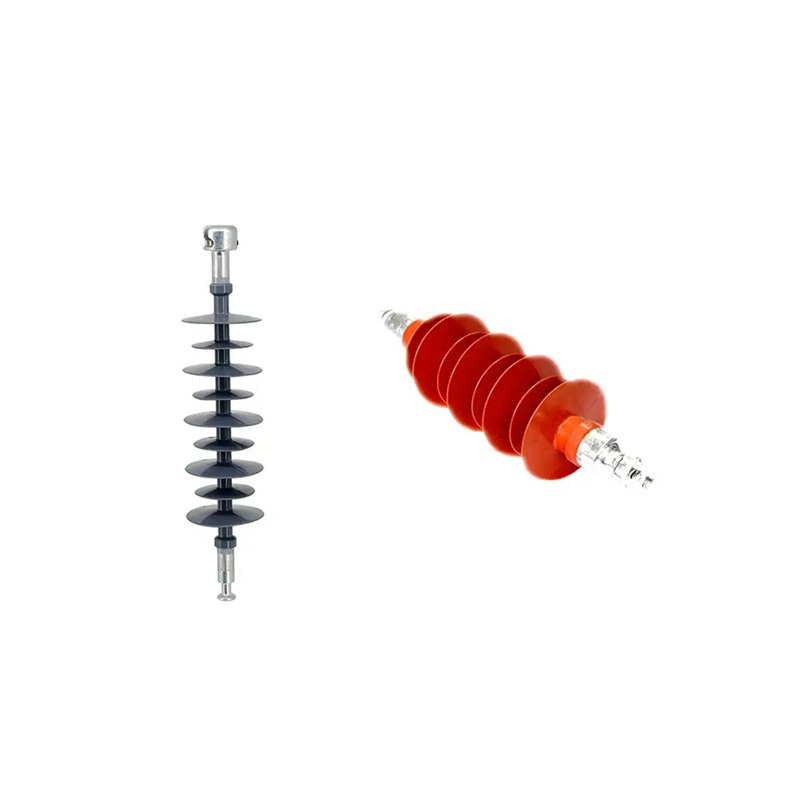

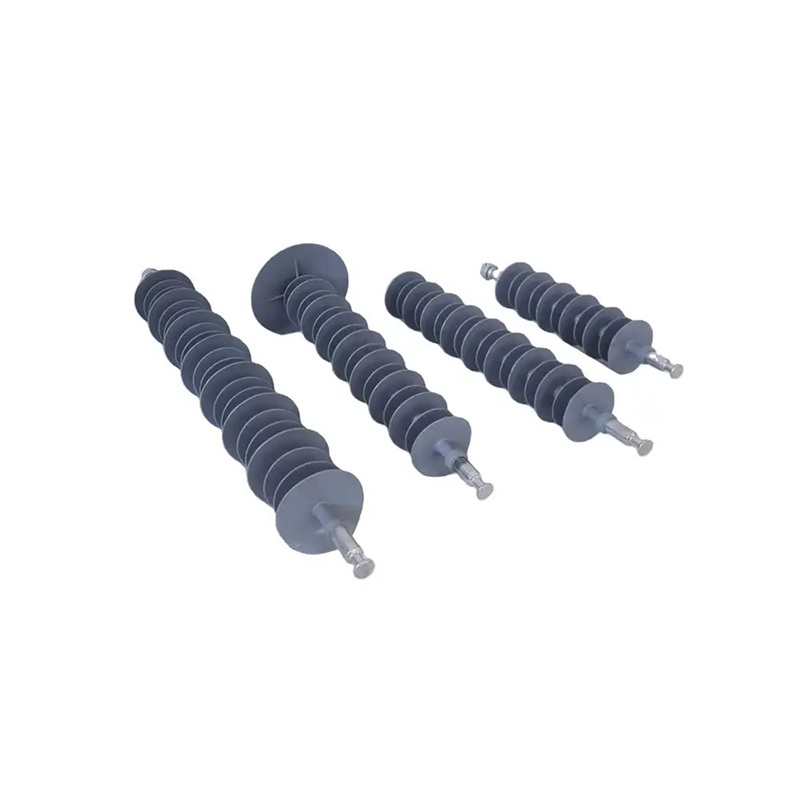

Insulator Materials: Power line insulators are commonly made of porcelain or composite materials. Porcelain insulators have been traditionally used and are known for their high mechanical strength and electrical resistance. Composite insulators, made of fiberglass-reinforced polymer, offer lighter weight, improved resistance to weather conditions, and resistance to vandalism.

Pollution Performance: Power line insulator in certain environments may be exposed to pollution, such as industrial emissions or coastal areas with salt deposits. Pollution can reduce the insulating properties of the surface of insulators, leading to electrical leakage or flashovers. To mitigate this, insulators can be designed with features like shed profiles or coatings that resist pollution and maintain their electrical performance.

They are crucial components of the electrical grid infrastructure. They ensure the safe and efficient transmission of electrical power from generation sources to consumers, protecting against electrical faults and maintaining uninterrupted power supply. Regular inspection and maintenance of power line insulators are essential to ensure their integrity and reliability in withstanding the environmental and electrical stresses they encounter.
