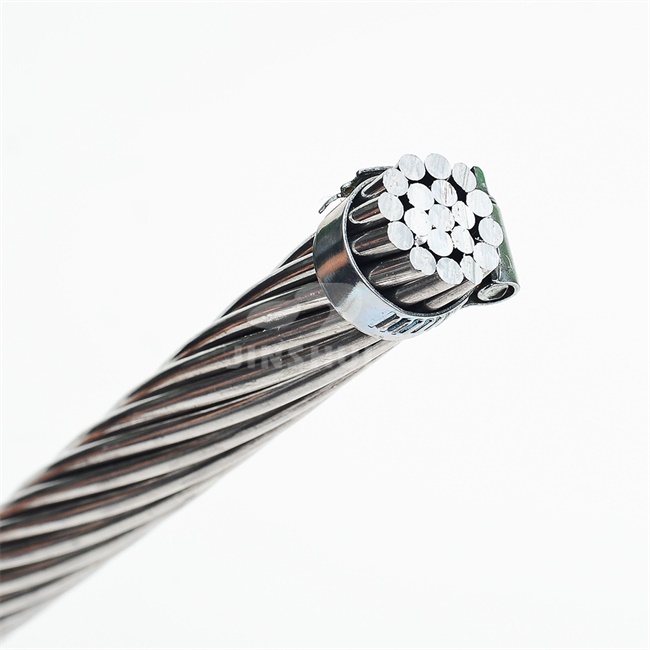

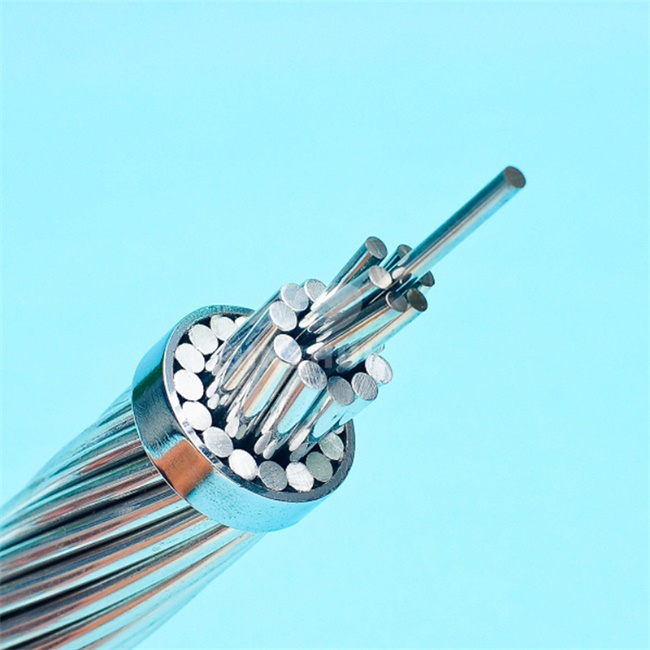

All Aluminum Alloy Conductor (AAAC)

Application

All Aluminum Alloy Conductor has better strength and weight, better electrical properties, better vertical tensile properties, and better corrosion resistance. These characteristics make AAAC widely recognized and loved by more people in power distribution and medium and high voltage transmission lines. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist. Some specific applications of AAAC conductors include:

High-voltage transmission lines:

AAAC are commonly used in high-voltage transmission lines where high strength and low electrical resistance are required.

Distribution lines:

All aluminum alloy conductor are used in distribution lines for power transmission from substations to homes and businesses.

Railway electrification:

AAAC conductors are used in overhead electrification systems for railways.

Solar power plants:

AAAC conductors are used in the transmission lines of solar power plants to transmit the power generated by solar panels to the grid.

Construction

AAAC conductor is made of from aluminum-magnesium-silicon alloy of high electrical conductivity (min 53% IACS) containing magnesium (0.6-0.9%) & silicon (0.5-0.9%) to give it better mechanical properties after treatment. AAAC conductors are made out of aluminum-alloy 6201.

The aluminum alloy used in AAAC Conductor is chosen for its high strength-to-weight ratio, excellent conductivity, and resistance to corrosion. The most common alloys used in AAAC conductors are 6201 and 6101, which contain small amounts of other elements such as magnesium and silicon to improve their mechanical and electrical properties.

Standards

AAAC Conductor (All Aluminum Alloy Conductor) meet or exceed the following standards: IEC61089, BS3242, DIN48201, ASTMB399, BS EN50183, GB/T 1179-2008.

Specification

American Standard(ASTM)

Code Name	Size(KCM)	Strand	Approx.EC Cond with Equivalent Resistance	Stranding	Diameter(in)		Cross Sectional Area(Sq in)	Weight per 1000ft(lbs)	Rated Strength(lbs)	ResistanceOhms/1000ft(lbs)		Current Rating(amps)
Code Name	Size(KCM)	Strand	Approx.EC Cond with Equivalent Resistance	Stranding	Individual Wires	Complete Cable	Cross Sectional Area(Sq in)	Weight per 1000ft(lbs)	Rated Strength(lbs)	DC @ 20oC	AC@ 75oC	Current Rating(amps)
Akron	30.58	7/w	6	6/1	.0661	.198	.0240	28.7	1,110	.659	.785	107
Alton	48.69	7/w	4	6/1	.0834	.250	.0382	45.7	1,760	.414	.493	143
Ames	77.47	7/w	2	6/1	.1052	.316	.0608	72.7	2,800	.260	.310	191
Azusa	123.3	7/w	1/0	6/1	.1327	.398	.0968	115.7	4,460	.163	.195	256
Anaheim	155.4	7/w	2/0	6/1	.1490	.447	.1221	145.9	5,390	.130	.154	296

Code	Old Code	Area(mm2)	No.of Wires	Diameter		Weight per Unit Length(kg/km)	Rated Strength(KN)	D.C Resistance(Ω/km)
Code	Old Code	Area(mm2)	No.of Wires	Wire(mm)	Cond(mm)	Weight per Unit Length(kg/km)	Rated Strength(KN)	D.C Resistance(Ω/km)
19-AL3	BOX	18.8	7	1.85	5.55	51.4	5.55	1.7480
24-AL3	ACACIA	23.8	7	2.08	6.24	64.9	7.02	1.3828
30-AL3	ALMOND	30.1	7	2.34	7.02	82.2	8.88	1.0926
35-AL3	CEDAR	35.5	7	2.54	7.62	96.8	10.46	0.9273
42-AL3	DEODAR	42.2	7	2.77	8.31	115.2	12.44	0.7797
48-AL3	FIR	47.8	7	2.95	8.85	130.6	14.11	0.6875
60-AL3	HAZEL	59.5	7	3.30	9.90	163.4	17.66	0.5494
72-AL3	PINE	71.6	7	3.61	10.8	195.6	21.14	0.4591
84-AL3	HOLLY	84.1	7	3.91	11.7	229.5	24.79	0.3913
90-AL3	WILLOW	89.7	19	4.04	12.1	245.0	26.47	0.3665
119-AL3	OAK	118.9	19	4.65	14.0	324.5	35.07	0.2767
151-AL3	MULBERRY	150.9	19	3.18	15.9	414.3	44.52	0.2192
181-AL3	ASH	180.7	37	3.48	17.4	496.1	53.31	0.1830
211-AL3	ELM	211.0	37	3.76	18.8	579.2	62.24	0.1568
239-AL3	POPLAR	239.4	37	2.87	20.1	659.4	70.61	0.1387
303-AL3	SYCAMORE	303.2	37	3.23	22.6	835.2	89.40	0.1095
362-AL3	UPAS	362.1	37	3.53	24.7	997.5	106.82	0.0917
479-AL3	YEW	479.0	61	4.06	28.4	1319.6	141.31	0.0693
498-AL3	TOTARA	498.1	61	4.14	29.0	1372.1	146.93	0.0666
587-AL3	RUBUS	586.9	61	3.50	31.5	1622.0	173.13	0.0567
659-AL3	SORBUS	659.4	61	3.71	33.4	1822.5	194.53	0.0505
821-AL3	ARAUCARIA	821.1		4.14	37.3	2269.4	242.24	0.0406
996-AL3	REDWOOD	996.2		4.56	41.0	2753.2	293.88	0.0334

Delivery

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually overhead bare conductor used wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
