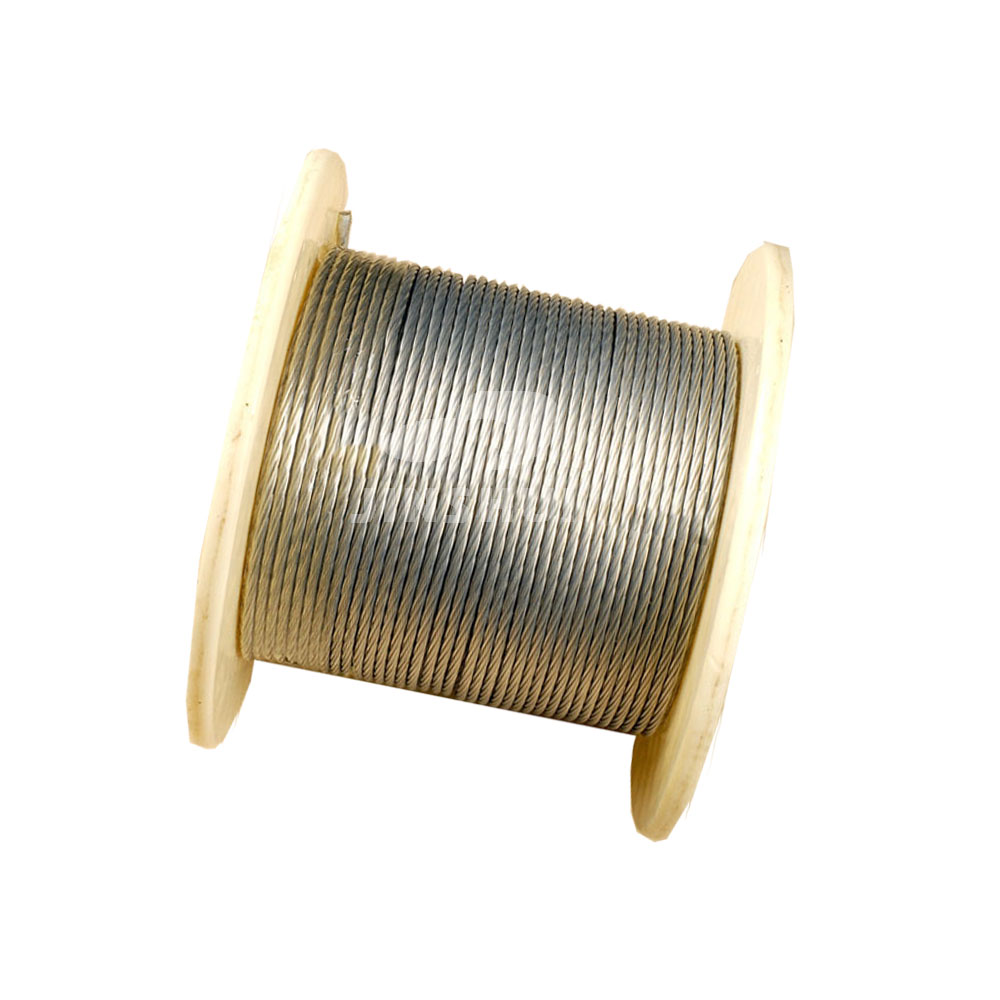

Galvanized steel strand is a steel product made by twisting multiple galvanized steel wires. Galvanized steel strands are usually used for load-bearing cables, suspension wires, stay wires, core wires or reinforcing rods, etc., and can also be used as ground wires for overhead power transmission, barrier cables on both sides of highways or structural cable cables in building structures.
The product galavanzed steel wire(GSW) is used for cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufacture by Zhengzhou jinshui has excellent mechanical property, best quality of coating and nice condition of surface.
Galvanized steel strand is a steel product made by twisting multiple galvanized steel wires. Galvanized steel strands are usually used for load-bearing cables, suspension wires, stay wires, core wires or reinforcing rods, etc., and can also be used as ground wires for overhead power transmission, barrier cables on both sides of highways or structural cable cables in building structures. Some common applications include:
| Diameter(mm) | Tensile Strength(mPa) | Weight of Zinc(g/m*2) |
| 1.24~2.25 | 1340~1620 | 185~215 |
| 2.25~3.00 | 1310~1590 | 230 |
| 3.00~3.50 | 1290~1550 | 245 |
| 3.50~4.25 | 1290~1520 | 260 |
| Number of wires/Dia. | Approx. Strand Dia. | Approx. Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx. Weight |
| Inch | Mm | kN | kN | kN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 7/2.64 | 5/16 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually galvanized steel wire used wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
