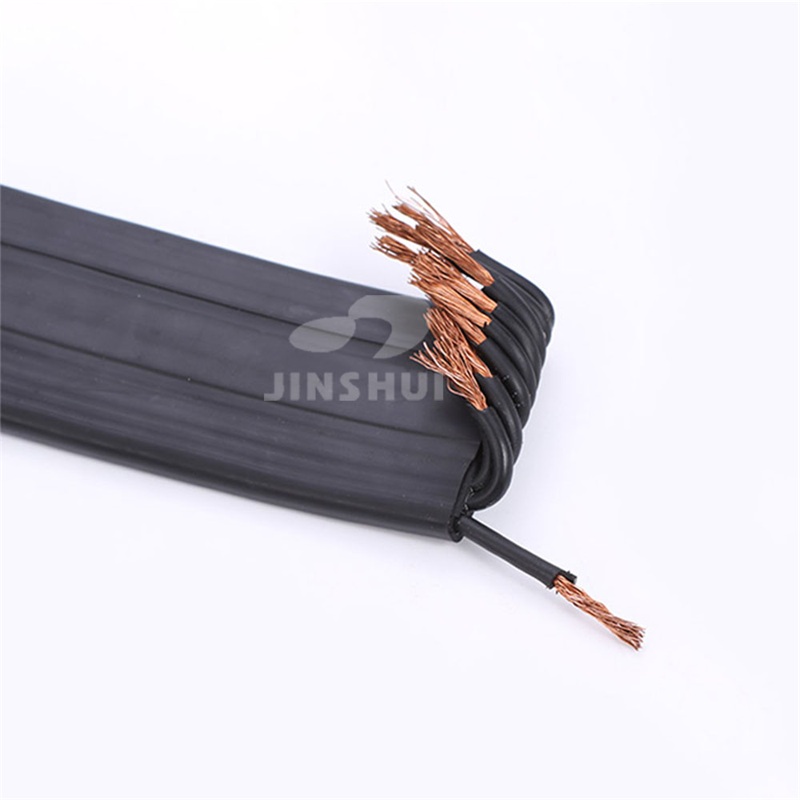

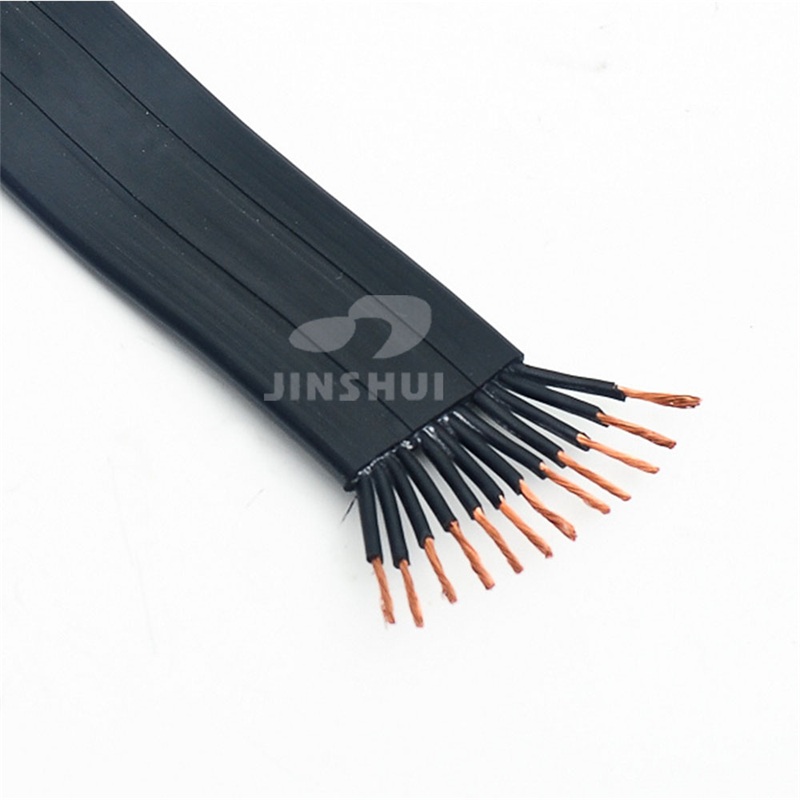

Elevator Control Cable

Application

The elevator control cable is designed with a special structure and have a long service life, maximizing the operating efficiency of elevator manufacturers. Elevator control cables provide overall electrical control over long suspension lengths while withstanding mechanical stress. The elevator cable can be used for long-distance suspension due to the steel wire bearing core. The function of the accompanying cables for elevators is indeed for power supply, including signal control, communication, car lighting, ventilation, air conditioning, etc.

Some common applications of elevator control cable include:

Elevator accompanying cable: installed on electrical equipment that moves back and forth.

Cables for CNC machine tools: Suitable for dry and humid indoor installations without strong stress release or forced guidance under free continuous reciprocating motion, especially for frequent bending occasions in industrial environments.

Parameters

• Conductor: ultra-fine oxygen-free copper wire, in line with VDE0295CLASS-5 standard
• Insulation: special mixed PVC material
• Sheath: Cold-resistant special sheath (gray, black, orange)
• Reinforcement: high-strength galvanized aviation steel wire
• Working temperature: the long-term allowable working temperature of the conductor shall not exceed 70°C, and the laying temperature shall not be lower than 0°C;

Advantages

The elevator cable has strong accompanying comprehensive performance and is suitable for elevator installation control, accompanying wiring, power supply, communication, monitoring, signal transmission, etc.; it has excellent wear resistance, can withstand large mechanical stress and suspension force, and has good oil resistance , cold resistance and moisture resistance.

Type

• TVV copper core PVC insulated sheathed round elevator cable;
• TVVB copper core PVC insulated sheathed flat elevator cable;
• TVVBP copper core PVC insulated sheathed flat shielded elevator cable;
• TVVBG copper core PVC insulated sheath flat reinforced core elevator cable;
• TVVBPG copper core PVC insulated sheathed flat shielded reinforced core elevator cable;
• T means elevator cable, V means polyvinyl chloride, B means flat cable, P shielding structure, G means steel wire reinforcement.

Delivery

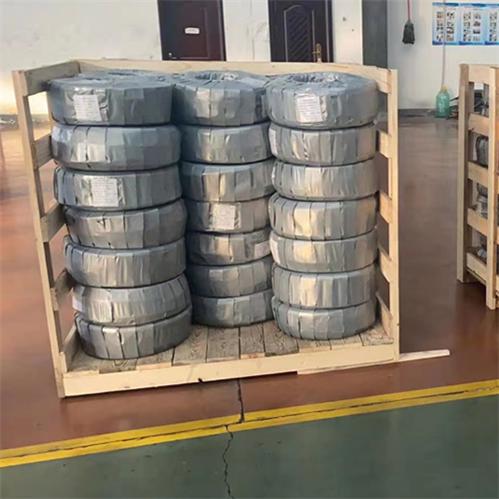

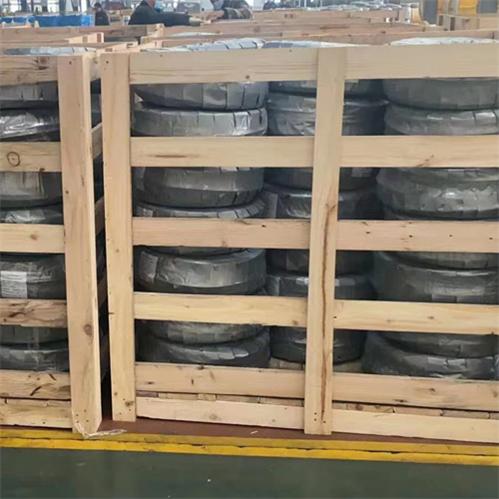

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually concentric cable used reel packaging, wooden drum packaging and other packaging style. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
