Flame retardant cables

Application

In the event of a fire, they may be burned and unable to operate, but they can prevent the spread of the fire. In layman's terms, if a cable catches fire, it can limit the burning to a local area, prevent the spread, and save various other equipment to avoid greater losses.

Some common applications of flame-retardant cables include:

Construction industry: Flame-retardant cables are mainly used in the electrical systems of public buildings such as high-rise buildings, shopping malls, airports and hospitals. If a fire occurs, flame-retardant cables can suppress the spread of fire and effectively protect people's lives and property.

Petrochemical industry: There are a large number of flammable and explosive substances in the petrochemical industry, such as crude oil and natural gas. Once a fire occurs, the consequences will be disastrous. Flame-retardant cables play a vital role in the petrochemical industry and can improve the safety of electrical equipment.

Shipping industry: In the shipping industry, flame-retardant cables are mainly used in the power supply system, communication system and navigation system of ships to ensure the safety and reliability of the power system when sailing at sea, and to avoid the loss of power in the event of a fire, which affects the safety of navigation.

Transportation industry: Flame-retardant cables are widely used in the transportation industry and are used in power systems in highways, rail transit, airports, etc. They not only ensure the quality of electricity, but also effectively prevent short circuits and fires in cables under high temperature and high humidity environments, thereby ensuring people's safe travel.

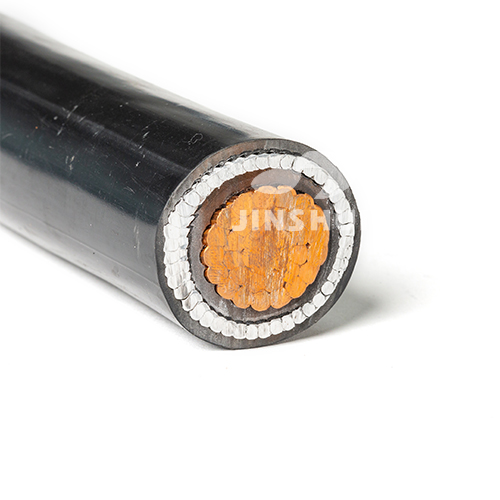

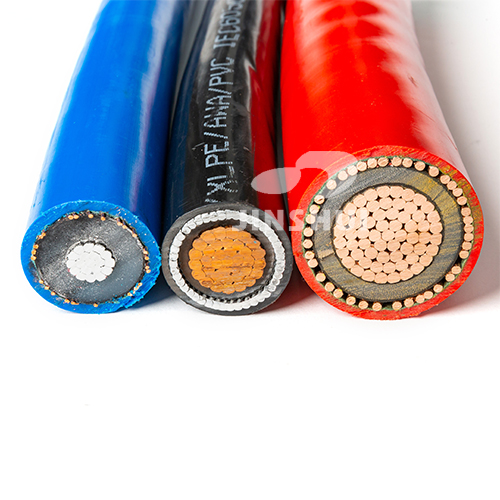

Construction

Conductors: Solid or stranded aluminum conductors, stranded copper conductors, class 2 copper or aluminum conductors to BS EN 60228 (formerly BS 6360), compacted or segmented strands.
Cross-sectional area: usually 35mm2 to 630mm2 (medium voltage XLPE power cables), 150-800mm2 (high voltage XLPE power cables)
Insulation: XLPE (often used for medium voltage cables) or EPR (often used in marine or marine applications due to its flexibility).
Metal Shield: Concentric copper wire shield, aluminum foil laminate, extruded lead alloy sheath.
Armoring: Aluminum tape armoring is mainly used for single-core cables, and galvanized steel wire armoring is mainly used for multi-core cables.
Outer Sheath: Cable sheath materials include PVC, EPR, LSZH, HDPE (High Density Polyethylene) (specify when ordering, other options are available) to meet different environmental requirements.
Short circuit temperature: +250 °C, operating temperature: -30 °C to 90 °C

Standards

The products are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.

Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or alumimum conductor). Conductor long-time operating temperature is 90℃. In short circuit, conductor highest temperature should be not more than 250℃

Flame-retardant wires and cables are divided into three grades: A, B, and C according to their combustion performance.

Class A flame-retardant wires and cables

Class A flame-retardant wires and cables are the best fire-resistant wires and cables, which can meet the high-level fire protection requirements of specific places. Class A flame-retardant wires and cables not only have excellent flame-retardant properties, but also release a small amount of toxic gas when burning to ensure the safety of personnel. The production cost of Class A flame-retardant wires and cables is relatively high, and they are suitable for special places with high requirements, such as subways, airports, and large public places.

Class B flame-retardant wires and cables

The flame-retardant performance of Class B flame-retardant wires and cables is second only to Class A, and can reduce the damage caused by fire accidents to a certain extent. The production cost of Class B flame-retardant wires and cables is relatively low, so they are suitable for general residences, shopping malls, hospitals and other places.

Class C flame-retardant wires and cables

Class C flame-retardant wires and cables have relatively poor flame-retardant properties and cannot meet high-level fire protection requirements. However, Class C flame-retardant wires and cables have relatively low costs and long service life, so they still have certain application value in some special occasions, such as industrial control systems in factories.

Name and Type

Type	Type	Name
ZR-YJV(ZR-YJY)	ZR-YJLV(ZR-YJLY)	XLPE Insulated,PVC(PE) Sheathed Flame-retardant Power Cable
ZR-YJV22(ZR-YJY23)	ZR-YJLV22(ZR-YJLY23)	XLPE Insulated,Steel Tape Armoured,PVC(PE) Sheathed Flame-retardant Power Cable
ZR-YJV32(ZR-YJY33)	ZR-YJLV32(ZR-YJLY33)	XLPE Insulated,Fine Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power Cable
ZR-YJV42(ZR-YJY43)	ZR-YJLV42(ZR-YJLY43)	XLPE Insulated,Thick Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power Cable

Specification

Three Cores Copper Conductor XLPE Insulated Power Cable

Nominal Cross-	Nominal Thickness of Insulation	Size of Armour(mm)			Approx.Overrall Diameter& Weight
Section	(mm)	Steel	Fine Steel Wire	Thick Steel Wire	YJV		YJY		YJV22		YJV23		YJV32		Recommending Current Rating(A)
(mm2)		Tape	Fine Steel Wire	Thick Steel Wire	YJV		YJY		YJV22		YJV23		YJV32		Recommending Current Rating(A)
		Layer x Thickness	Dia.	Dia.	Over-	Weight	Over-	Weight	Over-	Weight	Over-	Weight	Over-	Weight	In	In Air
			(mm)	(mm)	Dia.	(kg/km)	Dia.	(kg/km)	Dia.	(kg/km)	Dia.	(kg/km)	Dia.	(kg/km)	Ground
					(mm)		(mm)		(mm)		(mm)		(mm)
1.5	0.7	2x0.3	1.6	4	10.7	131	10.7	109	15.1	308	15.1	276	17.1	557	28	21
2.5	0.7	2x0.3	1.6	4	11.5	169	11.5	145	15	332	15	300	17	582	38	30
4	0.7	2x0.3	1.6	4	12.6	222	12.6	196	15.1	373	15.1	340	17.1	621	50	49
6	0.7	2x0.3	1.6	4	13.7	291	13.7	262	15.8	442	15.8	408	17.8	700	65	55
10	0.7	2x0.3	1.6	4	15.4	424	15.4	391	17.5	595	17.5	557	19.5	885	89	78
16	0.7	2x0.3	1.6	4	17.4	644	17.4	573	19.5	819	19.5	776	21.5	1141	115	105
25	0.9	2x0.3	1.6	4	21	902	21	855	24.6	1241	24.6	1186	26.6	1670	150	140
35	0.9	2x0.3	1.6	4	23.2	1188	23.2	1136	26.8	1563	26.8	1502	28.8	2033	180	170
50	1	2x0.3	1.6	4	25.8	1559	25.8	1501	29.6	1988	29.6	1916	31.8	2513	215	205
70	1.1	2x0.3	2	4	29.3	2195	29.3	2125	33.1	2678	33.1	2593	36.1	3502	265	260
95	1.1	2x0.5	2	4	32.6	2959	32.6	2876	37.4	3745	37.4	3640	39.4	4392	315	320
120	1.2	2x0.5	2	4	35.6	3701	35.6	3606	40.4	4557	40.4	4438	42.4	5258	360	370
150	1.4	2x0.5	2.5	4	38.9	4614	38.9	4499	43.7	5545	43.7	5410	46.9	6706	405	430
185	1.6	2x0.5	2.5	4	42.7	5740	42.7	5609	47.9	6801	47.9	6641	51.1	8104	460	490
240	1.7	2x0.5	2.5	4	47.5	7435	47.5	7276	52.9	8634	52.9	8444	56.1	10062	530	580
300	1.8	2x0.5	2.5	4	52	9215	52	9028	57.4	10526	57.4	10311	60.6	12082	590	660
400	2	2x0.5	3.15	4	58	11771	58	11540	63.8	13284	63.8	13020	68.5	15744	670	750

Delivery

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually insulated power cables used wooden drum packaging, iron-wood pallet packaging and other packaging style. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
