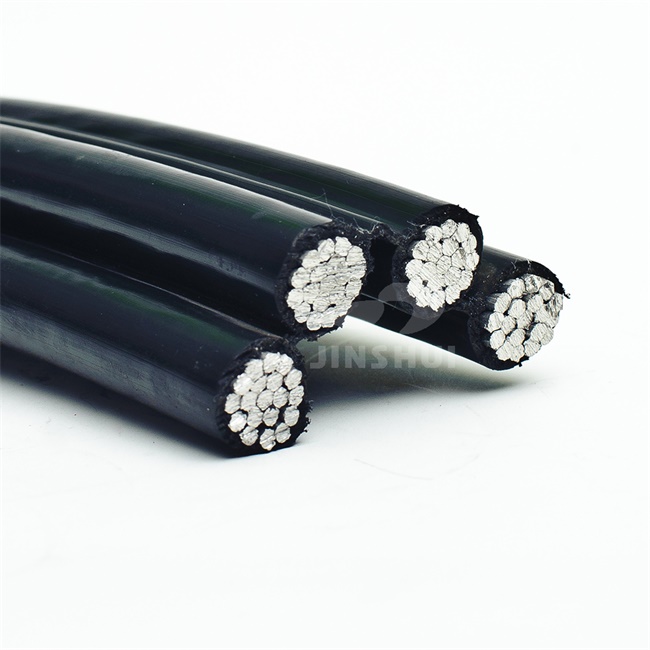

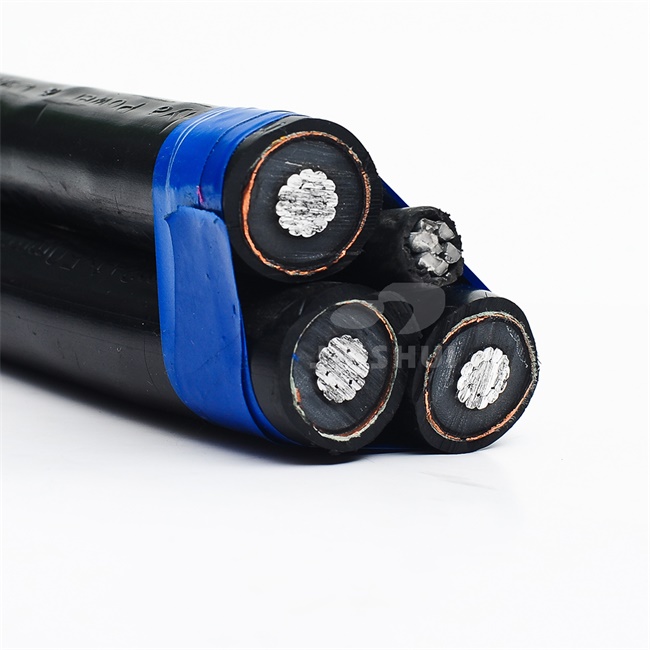

Overhead Aerial Bundle Cable

Overhaed aerial bundle cable are widely used in urban, forest, and coastal areas for power grid transformation and are used for overhead power transmission.



Residential power delivery



Commercial power delivery



Street lighting



Agricultural power supply

Free Quote

[email protected]

Application

Overhead aerial bundle cable are widely used in urban, forest, and coastal areas for power grid transformation and are used for overhead power transmission. Here are some of the common applications of overhead aerial bundle cable:

Transmission lines for construction sites：

Due to the complexity, confusion and variability of the construction site, the power distribution work is difficult, and the potential safety hazards of power consumption also exist at any time. Moreover, the power consumption on the construction site is temporary power consumption, and the 0.6~1kV low voltage aerial bundle cable has become the best choice for construction power consumption.

Outdoor or street lighting:

Covered line wire aluminum conductor is often used for street lighting applications where it is hung on utility poles and connected to a lighting fixture. It is ideal for this application because it is lightweight and can be easily strung across long distances.

Construction

Conductor Material: Aluminum
Conductor Shape: Circular stranded (RM)
Outer Sheath: HDPE

Standards

ASTM B-230,B-231,B-232 and B-339 & ICEA S-76-474

Specification

Code Word	Phase conductor				Bare Neutral Messenger		Weight			Ampacity
	Size&No.of Wires	InsulationThickness	Nominal Diameter		Size&No.of Wires	Rated Strength(lbs.)	XLPE	POLY	Total
	Size&No.of Wires	InsulationThickness	Bare	OD	Size&No.of Wires	Rated Strength(lbs.)	XLPE	POLY	Total
		mm	mm			kg	Kg/km	Kg/km	Kg/km	A
Quadruplex Overhead Service Drop Aluminum Cable ACSR
Morochuca	6-Solid	1.143	4.115	6.401	6-6/1	539.772	63	149	229	78
Chola	6-7	1.143	4.674	6.960	6-6/1	539.772	71	149	237	78
Morgam	4-Solid	1.143	5.182	7.468	4-6/1	843.667	79	238	344	103
Hackney	4-7	1.143	5.893	8.179	4-6/1	843.667	90	238	356	103
Palomino	2-7	1.143	7.417	9.703	2-6/1	1292.732	115	377	557	136
Albino	1-19	1.524	8.433	11.481	1-6/1	1610.245	171	473	699	158
Standardbred	1/0-7	1.524	9.347	12.395	1/0-6/1	1986.724	192	598	859	182
Costena	1/0-19	1.524	9.474	12.522	1/0-6/1	1986.724	193	598	862	182
Chicoteagues	2/0-7	1.524	10.516	13.564	2/0-6/1	2404.027	217	753	1060	210
Grullo	2/0-19	1.524	10.643	13.691	2/0-6/1	2404.027	220	753	1063	210
Mare	3/0-7	1.524	11.786	14.834	3/0-6/1	3002.766	249	951	1308	242
Suffolk	3/0-19	1.524	11.938	14.986	3/0-6/1	3002.706	251	951	1313	242
Stallion	4/0-7	1.524	13.259	16.307	4/0-6/1	3787.477	286	1198	1622	279
Appaloosa	4/0-19	1.524	13.411	16.459	4/0-6/1	3787.477	289	1198	1627	279

Delivery

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually overhead insulated cables used reel packaging, wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
