Triplex overhead service drop cable branch cables are commonly used for overhead power lines and service lines of 0.6/1kV, 6/10kV and below
Triplex overhead aluminum cable branch cables are commonly used for overhead power lines and service lines of 0.6/1kV, 6/10kV and below, and are usually used to transmit power from utility poles to residential or commercial buildings. Here are some applications of triplex overhead service drop cable:
Triplex overhead aluminum cable is commonly used for delivering power from a utility pole to a residential building. The cable is designed to withstand the outdoor environment and provide a reliable and safe power supply to the building.
Triplex overhead aluminum cable is also used for delivering power to commercial buildings such as shops, offices, and factories. The cable is available in different sizes and configurations to suit the specific power requirements of the building.
Triplex overhead aluminum cable is used for powering street lights in urban and suburban areas. The cable is designed to withstand harsh weather conditions and provide a long-lasting and reliable power supply to the lights.
Triplex overhead aluminum cable can be used for temporary power supply to construction sites, outdoor events, and other temporary installations. The cable can be easily installed and removed, making it a convenient option for temporary power needs.

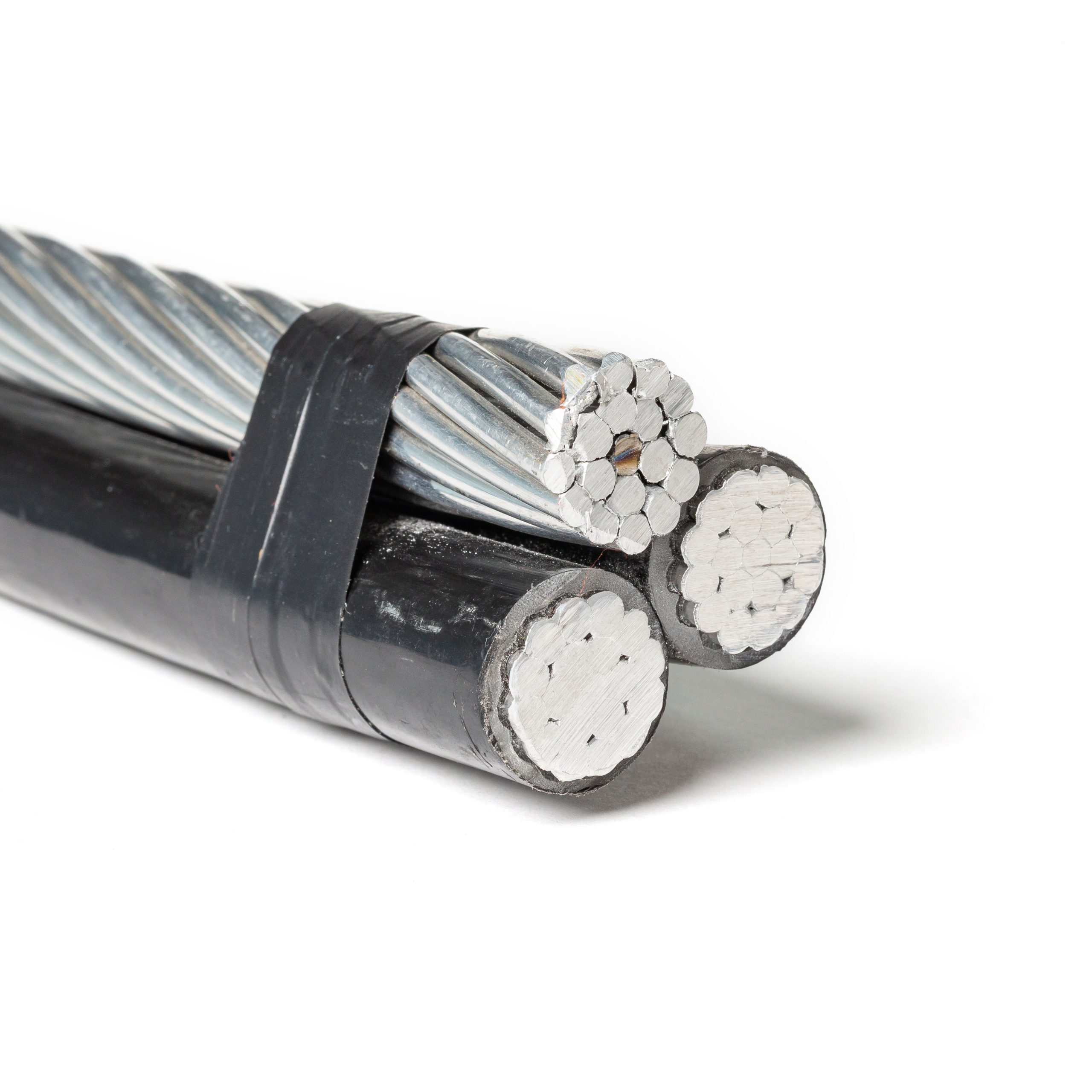

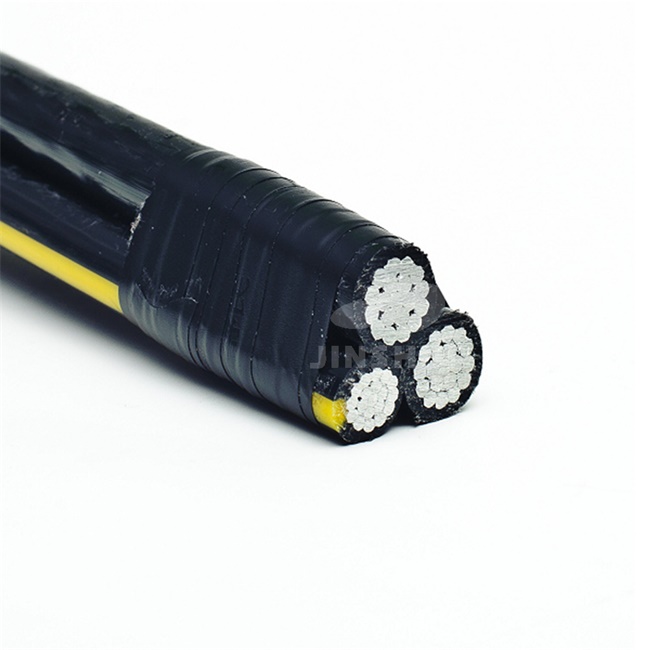

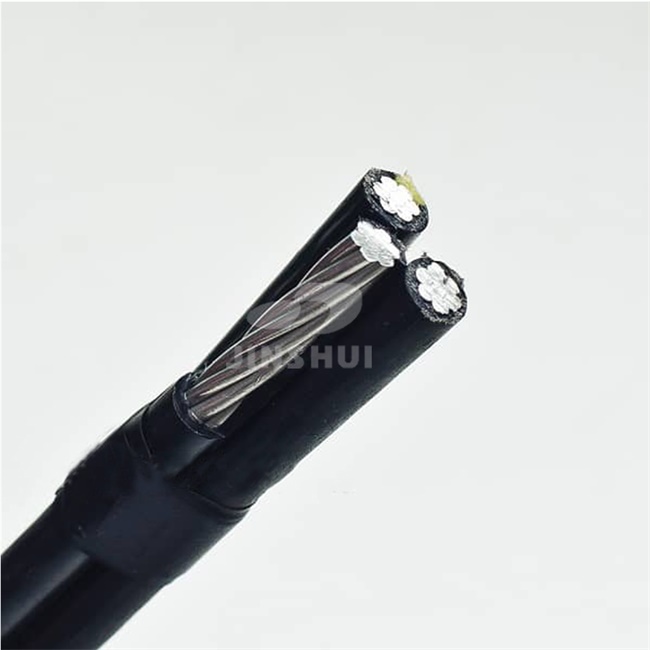

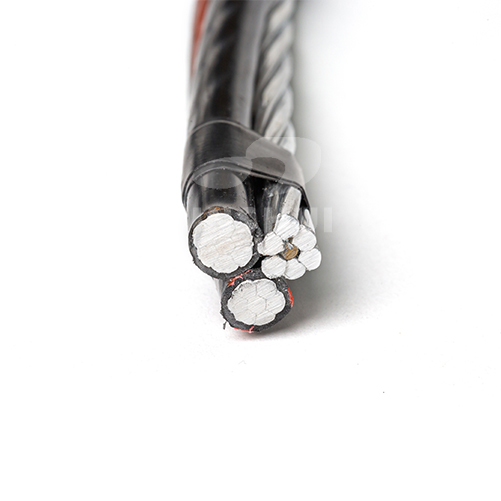

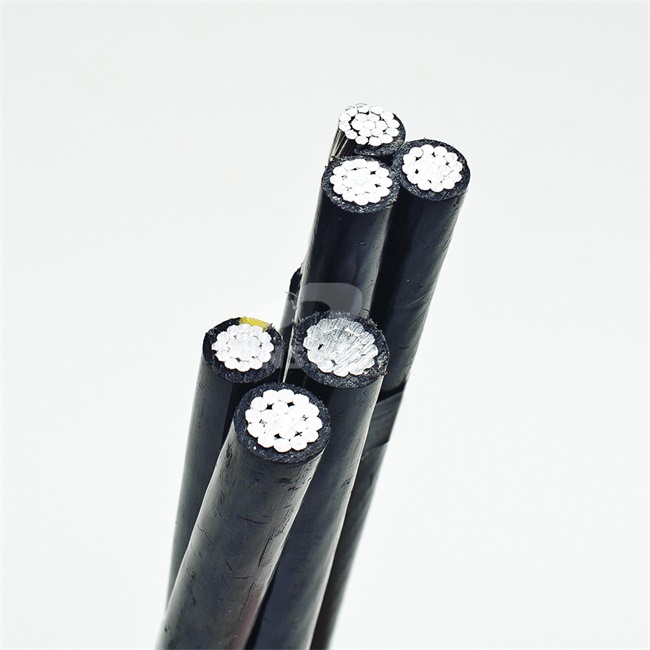

3 Cores consisting of standard Concentric strand or compressed 1350-H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC, ACSR or 6201 alloy neutral messenger.
The first step in constructing triplex overhead service drop cable is stranding the individual conductors together. The conductors are twisted together to form a stranded cable, which is stronger and more flexible than a single solid conductor.
The main function of the cable insulation layer is to insulate the conductors in the cable from the surrounding environment or from adjacent conductors. Insulation is usually made of materials such as polyvinyl chloride (PVC), polyethylene (PE) or cross-linked polyethylene (XLPE).
ASTM B-230,B-231,B-232 and B-339
ICEA S-76-474
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft (lbs) | Ampacity(amps) | ||||||
| Size AWG | Stranding | Insulation Thickness(mls) | Size AWG | Stranding | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Minex | 6 | Solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 |
| Prawn | 4 | Solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 |
| Dlustra | 3/0 | 19 | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 |
| 6201 ALLOY REDUCED NEUTRAL-MESSENGER | ||||||||||
| Artemia | 4 | Solid | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 |
| Crayfish | 2/0 | 7 | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 |
| Sipho | 2/0 | 19 | 60 | 1 | 7 | 3,530 | 441.0 | 422.5 | 235 | 185 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 | 315 | 245 |
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft (lbs) | Ampacity(amps) | ||||||
| Size AWG | Stranding | Insulation Thickness(mls) | Size AWG | Stranding | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| WITH ACSR REDUCED SIZE MESSENGER | ||||||||||
| Scallop | 4 | Solid | 45 | 6 | 6/1 | 1,190 | 148 | 144 | 115 | 90 |
| Strombus | 4 | 7/w | 45 | 6 | 6/1 | 1,190 | 158 | 148 | 115 | 90 |
| Cockle | 2 | 7/w | 45 | 4 | 6/1 | 1,860 | 233 | 227 | 150 | 120 |
| Janthina | 1/0 | 7/w | 60 | 2 | 6/1 | 2,850 | 376 | 365 | 205 | 160 |
| Ranella | 1/0 | 19/w | 60 | 2 | 6/1 | 2,850 | 372 | 362 | 205 | 160 |
| Cavolinia | 2/0 | 7/w | 60 | 1 | 6/1 | 3,550 | 462 | 451 | 235 | 185 |
| Clio | 2/0 | 19/w | 60 | 1 | 6/1 | 3,550 | 458 | 446 | 235 | 185 |
| Sanddollar | 3/0 | 7/w | 60 | 1/0 | 6/1 | 4,380 | 570 | 557 | 275 | 215 |
| Aega | 3/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 565 | 552 | 275 | 215 |
| Cuttlefish | 4/0 | 7/w | 60 | 2/0 | 6/1 | 5,310 | 706 | 691 | 315 | 245 |
| Cerapus | 4/0 | 19/w | 60 | 2/0 | 6/1 | 5,310 | 699 | 684 | 315 | 245 |
| Cowry | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8,350 | 1135 | 1093 | 420 | 325 |

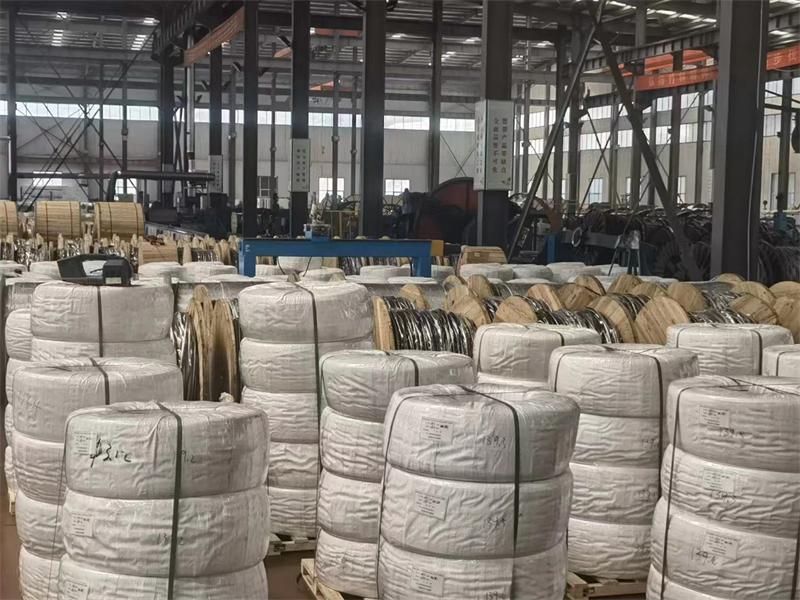

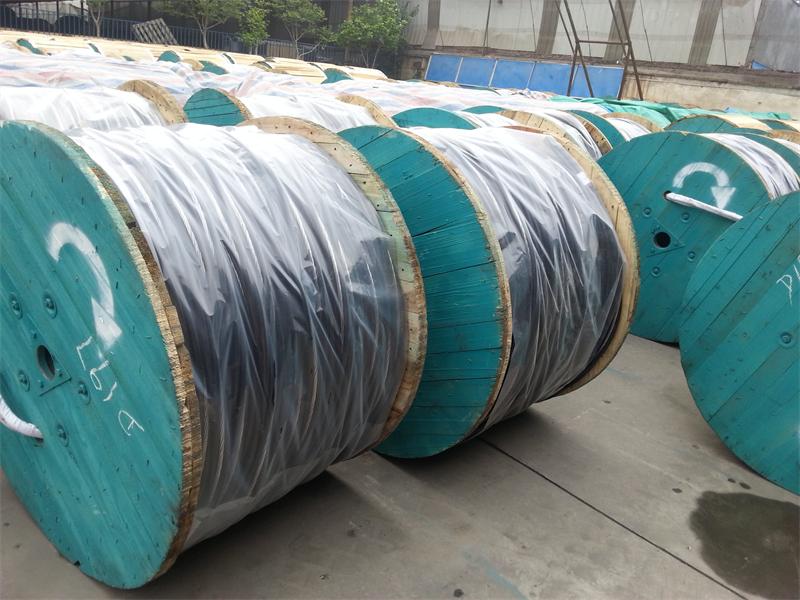

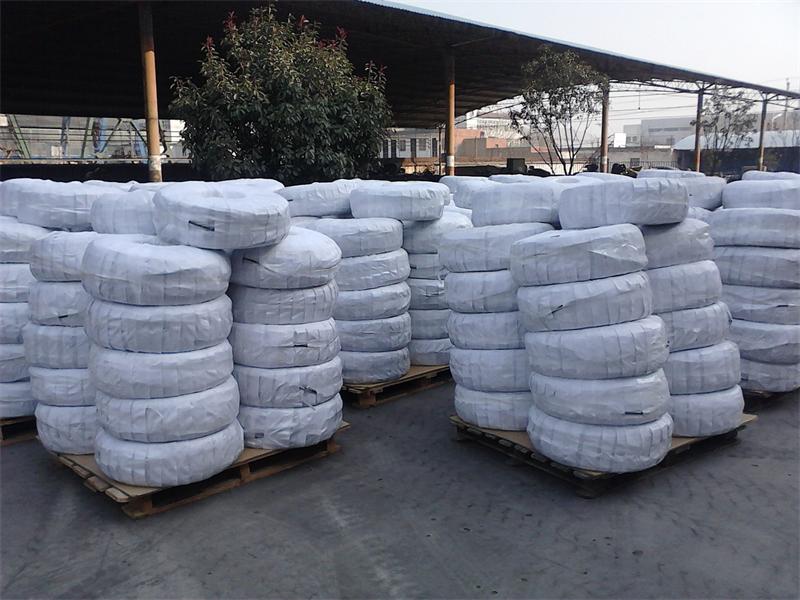

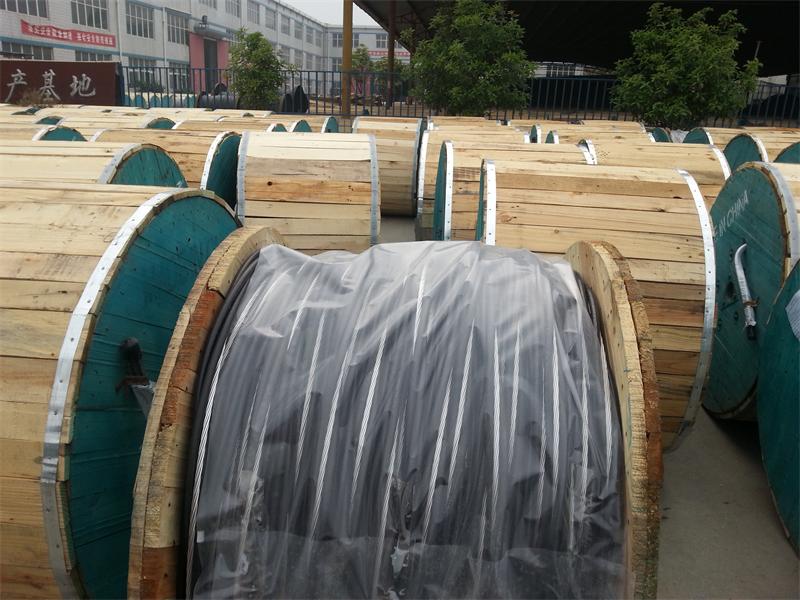

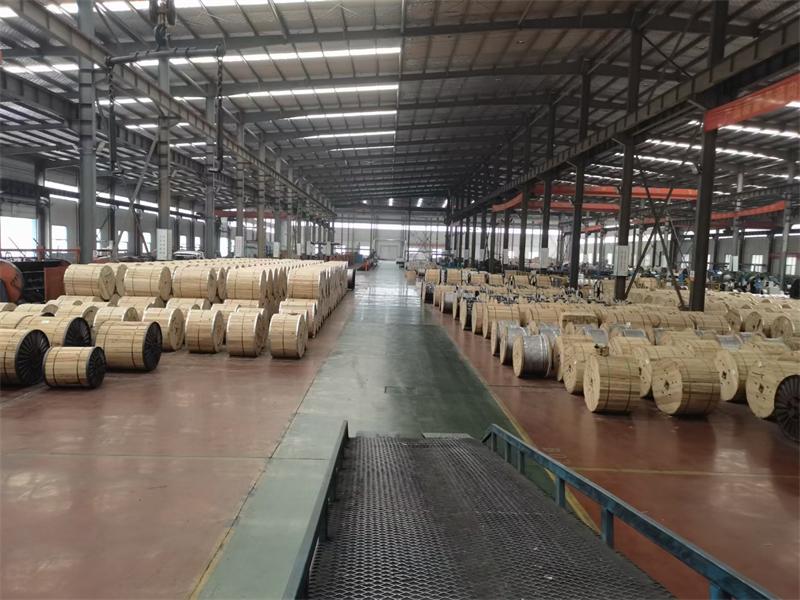

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually overhead insulated cables used reel packaging, wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
